CirCore provides durable ambient lighting and features a removable gear tray for easy maintenance and sustainable technology upgrades.

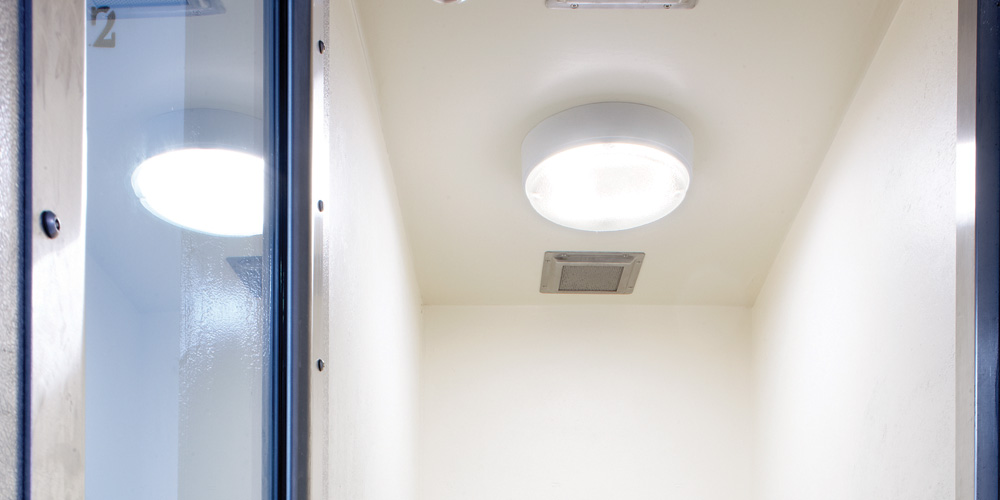

Applications include the perimeter of buildings.
CirCore
IP65
IK14 (100J)
Bulkhead
Class I
Surface
HT50°C
Community and Public
CirCore is a vandal resistant bulkhead specifically designed for community and public environments.
Standard Colours
Textured Black
Textured White
Product Information
Product Specification
Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Die cast aluminium body.
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.
Driver: Electronic control gear on removable tray with fused plug & socket connector block.
Mounting: Wall or ceiling.
Cable Entry: Provision for conduit entry in back.
Technical Information
| CirCore | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| Opal | ||||
| CC-1300N-X-TB | 1437 | 15.2 | 94 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₇₀B₁₀>110,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 356 | 2.4 | C | Ø300mm, 80mm | |
| CC-1800N-X-TB | 2001 | 21.8 | 91 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₇₀B₁₀>110,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 356 | 2.4 | C | Ø300mm, 80mm | |
Fitting Options
| Microwave Sensor - Basic | -M1 |
| Conduit Hole in Both Ends | -2H |
| Change Over Relay, 240V Relay Supplied | -ER |
| Central Battery Maintained 110V | -EV |
| Non-Maintained 3 Hour Emergency | -NE |
| Maintained Emergency 3 Hour | -E3 |
| Textured Black | -TB |
| Textured White | -TW |
| Corridor Function | -CF |
•For paint colour options, please replace -TB with required paint code.
• HT Applies to standard version. For any options (e.g.-E3) and to check additional applications please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• -CF will only work if combined with -M1 or an external presence detection sensor supplied by others.
• -NE cannot be combined with -CF/ -M1.
• -ER cannot be combined with -M1.
