Flair S12

Flair S12

IP65

IK08 (5J)

Linear

Class I

Recessed

Surface

Transport

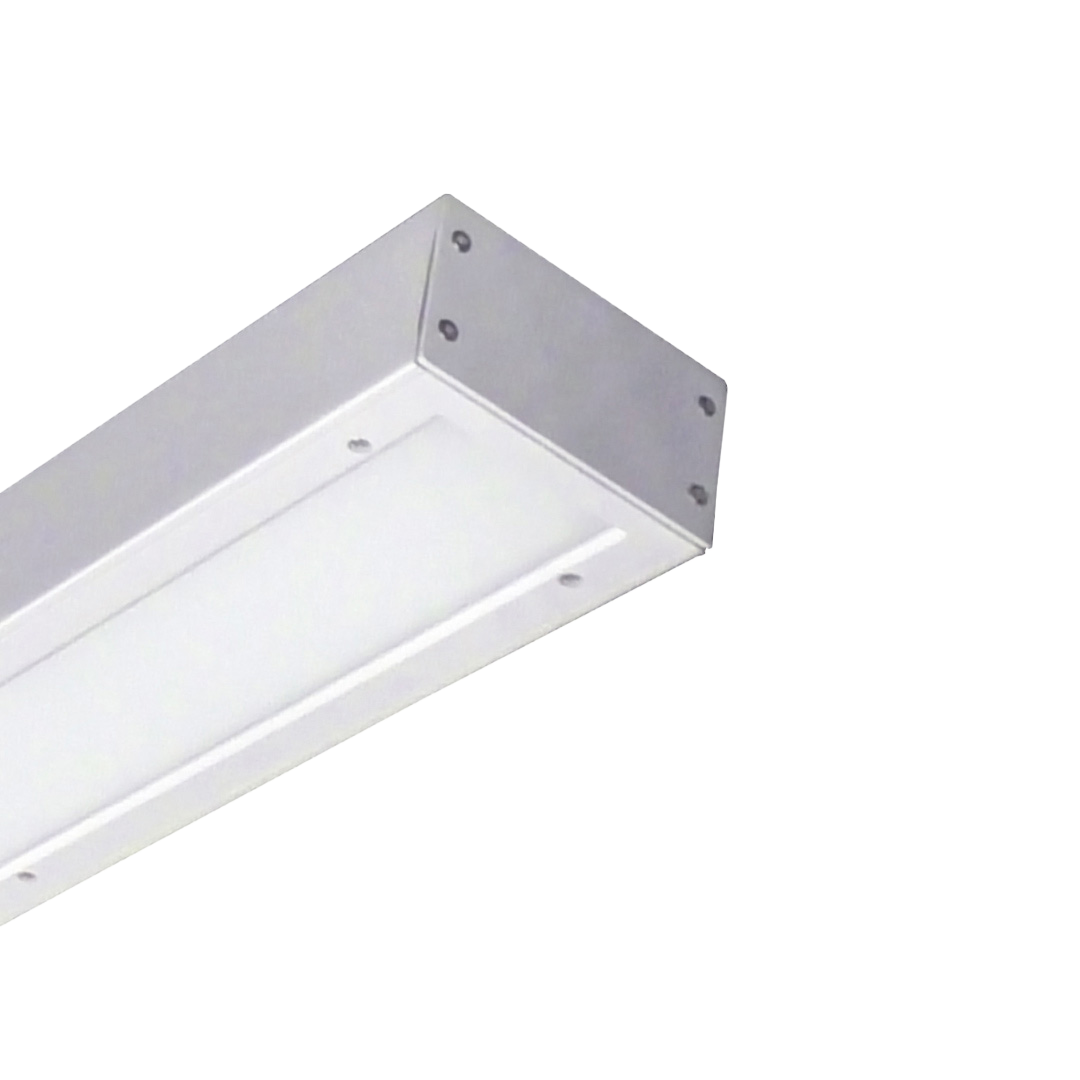

Flair S12 is a linear luminaire designed in accordance with fire precautions for subsurface rail stations (Section 12).

Standard Colours

Product Information

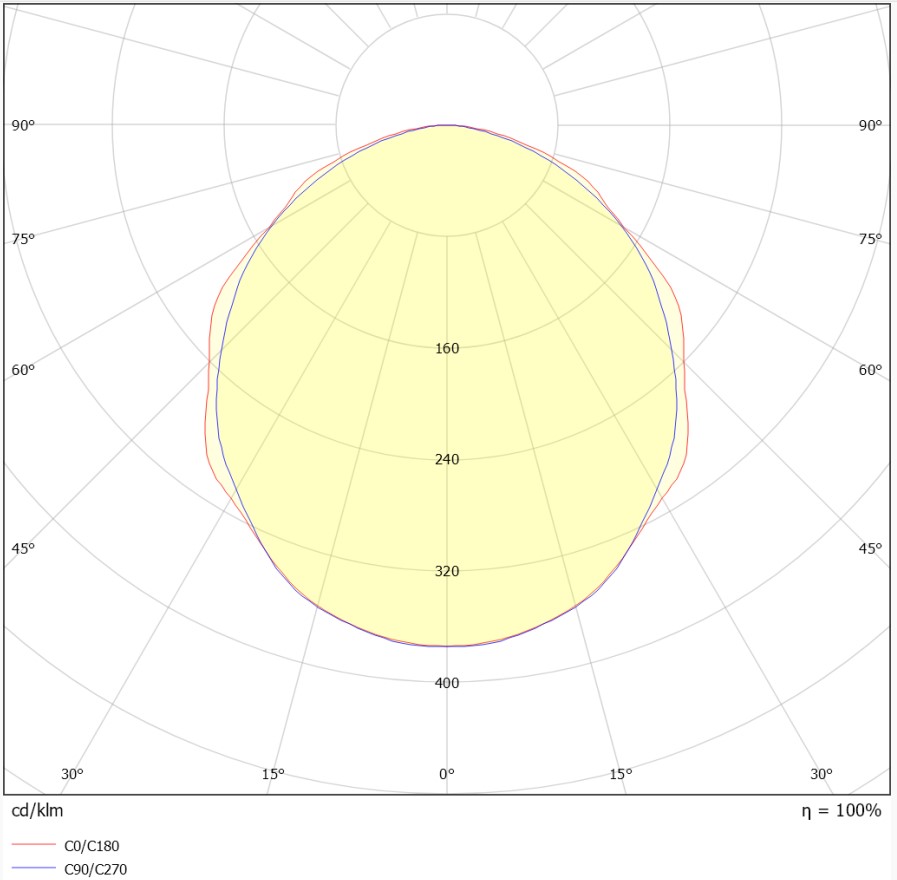

Flair S12’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare. Incorporating a removable gear tray ensures Flair S12 is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Flair S12 complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.

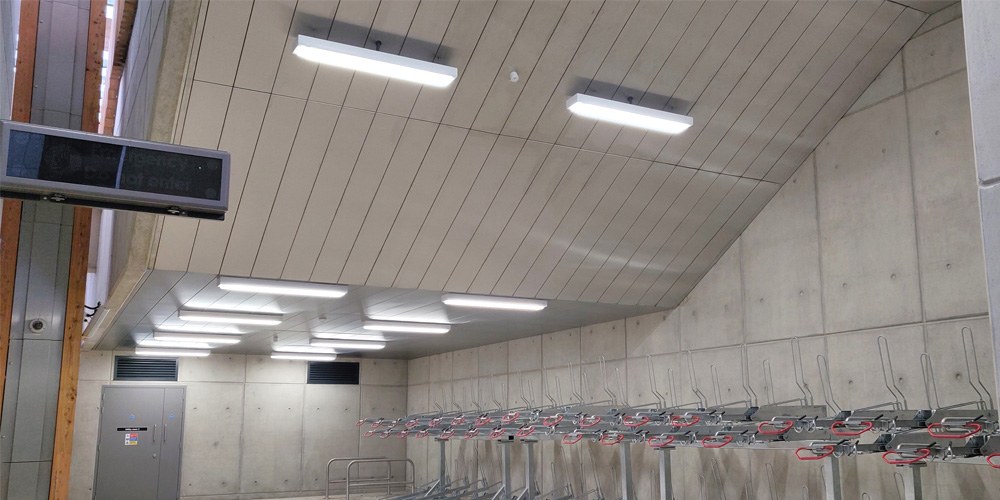

Applications include ticket areas, station forecourts, general circulation areas, covered platforms and subways.

Product Specification

Impact Resistance Rating: IK08 (5J). More information, CLICK HERE.

Ingress Protection Rating: IP65. More information, CLICK HERE.

Housing: Extruded aluminium body with die cast end caps.

Paint: Polyester powder coat. All colours available, CLICK HERE.

Diffuser: Toughened frosted glass diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on removable tray with fused plug & socket connector block.

Mounting: Ceiling.

Cable Entry: Provision for conduit entry in back.

Technical Information

Flair S12	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
L615mm Frosted
FLR-2-1500N-F-MS-ST	1416	14.7	96	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	4.8

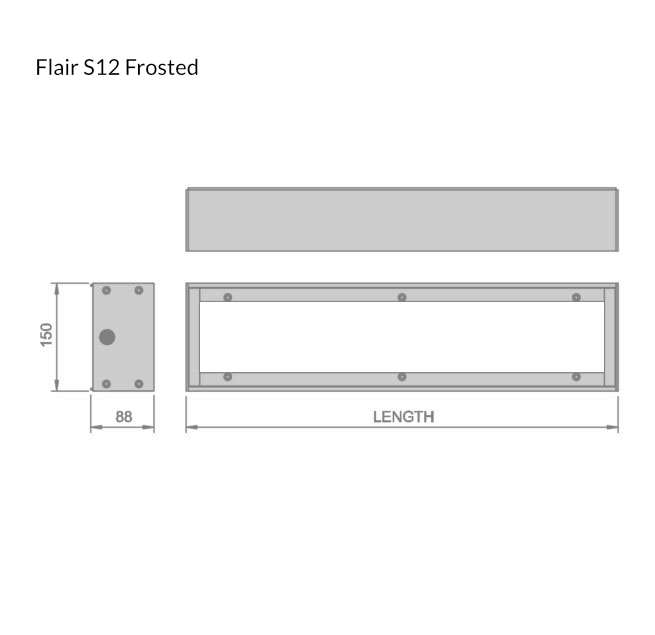

	LED Energy Rating	Dimensions
	C	150mm x 88mm
FLR-2-2000N-F-MS-ST	1899	19.6	97	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 88mm
FLR-2-2500N-F-MS-ST	2391	25	96	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 88mm
FLR-2-3000N-F-MS-ST	2706	28.6	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 88mm
FLR-2-1500W-F-MS-ST	1346	14.7	91	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	4.8
	LED Energy Rating	Dimensions
	D	150mm x 88mm
FLR-2-2000W-F-MS-ST	1804	19.6	92	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	4.8
	LED Energy Rating	Dimensions
	D	150mm x 88mm
FLR-2-2500W-F-MS-ST	2272	25	91	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	4.8
	LED Energy Rating	Dimensions
	D	150mm x 88mm
FLR-2-3000W-F-MS-ST	2571	28.6	90	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	4.8
	LED Energy Rating	Dimensions
	D	150mm x 88mm
L615mm Clear
FLR-2-1500N-C-MS-ST	1064	11.5	93	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4.8
	LED Energy Rating	Dimensions
	B	150mm x 88mm
FLR-2-2000N-C-MS-ST	1421	15	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4.8
	LED Energy Rating	Dimensions
	B	150mm x 88mm
FLR-2-2500N-C-MS-ST	1779	18.7	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4.8
	LED Energy Rating	Dimensions
	B	150mm x 88mm
FLR-2-3000N-C-MS-ST	2234	23.6	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4.8
	LED Energy Rating	Dimensions
	B	150mm x 88mm
FLR-2-1500W-C-MS-ST	1011	11.5	88	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 88mm
FLR-2-2000W-C-MS-ST	1350	15	90	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 88mm
FLR-2-2500W-C-MS-ST	1690	18.7	90	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 88mm
FLR-2-3000W-C-MS-ST	2122	23.6	90	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 88mm
L1215mm Frosted
FLR-4-3000N-F-MS-ST	3012	26.8	112	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	553
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	C	150mm x 88mm
FLR-4-4000N-F-MS-ST	4065	36.6	111	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	553
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	C	150mm x 88mm
FLR-4-5000N-F-MS-ST	5041	46.4	109	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	553
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	C	150mm x 88mm
FLR-4-6000N-F-MS-ST	5838	54.1	108	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	553
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	C	150mm x 88mm
FLR-4-3000W-F-MS-ST	2861	28.1	107	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	525
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	D	150mm x 88mm
FLR-4-4000W-F-MS-ST	3862	38.6	106	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	525
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	D	150mm x 88mm
FLR-4-5000W-F-MS-ST	4789	49.6	103	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	525
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	D	150mm x 88mm
FLR-4-6000W-F-MS-ST	5546	57.8	103	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	525
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	D	150mm x 88mm
L1215mm Clear
FLR-4-3000N-C-MS-ST	2153	20.2	107	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	600
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	B	150mm x 88mm
FLR-4-4000N-C-MS-ST	2888	27.2	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	600
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	B	150mm x 88mm
FLR-4-5000N-C-MS-ST	3692	34.8	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	600
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	B	150mm x 88mm
FLR-4-6000N-C-MS-ST	4778	45.6	105	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	600
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	B	150mm x 88mm
FLR-4-3000W-C-MS-ST	2045	20.2	101	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	570
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	C	150mm x 88mm
FLR-4-4000W-C-MS-ST	2744	27.2	101	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	570
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	C	150mm x 88mm
FLR-4-5000W-C-MS-ST	3507	34.8	101	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	570
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	C	150mm x 88mm
FLR-4-6000W-C-MS-ST	4539	45.6	100	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	570
	Weight (kg)	LED Energy Rating	Dimensions
	8.7	C	150mm x 88mm
L1515mm Frosted
FLR-5-3750N-F-MS-ST	3826	32.5	118	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	526
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	C	150mm x 88mm
FLR-5-5000N-F-MS-ST	5263	45.7	115	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	526
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	C	150mm x 88mm
FLR-5-6250N-F-MS-ST	6458	56.8	114	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	526
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	C	150mm x 88mm
FLR-5-7500N-F-MS-ST	7233	65	111	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	526
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	C	150mm x 88mm
FLR-5-3750W-F-MS-ST	3635	32.5	112	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	499
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	D	150mm x 88mm
FLR-5-5000W-F-MS-ST	5000	45.7	109	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	499
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	D	150mm x 88mm
FLR-5-6250W-F-MS-ST	6135	56.8	108	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	499
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	D	150mm x 88mm
FLR-5-7500W-F-MS-ST	6872	65	106	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	499
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	D	150mm x 88mm
L1515mm Clear
FLR-5-3750N-C-MS-ST	3549	31.3	113	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	670
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	B	150mm x 88mm
FLR-5-5000N-C-MS-ST	4535	40.2	113	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	670
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	B	150mm x 88mm
FLR-5-6250N-C-MS-ST	5525	49.8	111	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	670
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	B	150mm x 88mm
FLR-5-7500N-C-MS-ST	6591	61.6	107	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	670
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	B	150mm x 88mm
FLR-5-3750W-C-MS-ST	3372	31.3	108	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	636
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	C	150mm x 88mm
FLR-5-5000W-C-MS-ST	4308	40.2	107	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	636
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	C	150mm x 88mm
FLR-5-6250W-C-MS-ST	5249	49.8	105	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	636
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	C	150mm x 88mm
FLR-5-7500W-C-MS-ST	6261	61.6	102	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	636
	Weight (kg)	LED Energy Rating	Dimensions
	10.5	C	150mm x 88mm

Fitting Options

Conduit Hole in One End	-1H
Fully Recessed	-R
Conduit Hole in Both Ends	-2H
Maintained Emergency 3 Hour, Self Test	-ES
Maintained Emergency 3 Hour, DALI	-ED
Maintained Emergency 3 Hour	-E3
Pure White	-PW
Matt Silver	-MS
Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA

• For paint colour options, please replace -MS with required paint code.
• -E3 / -ES / -ED options not available on all 615mm versions.
• -R Recessed includes 20mm flange all round. For recess cut-out add 10mm to width and length shown.
