Gemco provides robust ambient lighting, featuring a removable gear tray for easy maintenance and sustainable technology upgrades.
Applications include association areas and police and law courts.
Gemco
IP65
IK14 (100J)
Bulkhead
Class I
Surface
Community and Public
Custodial

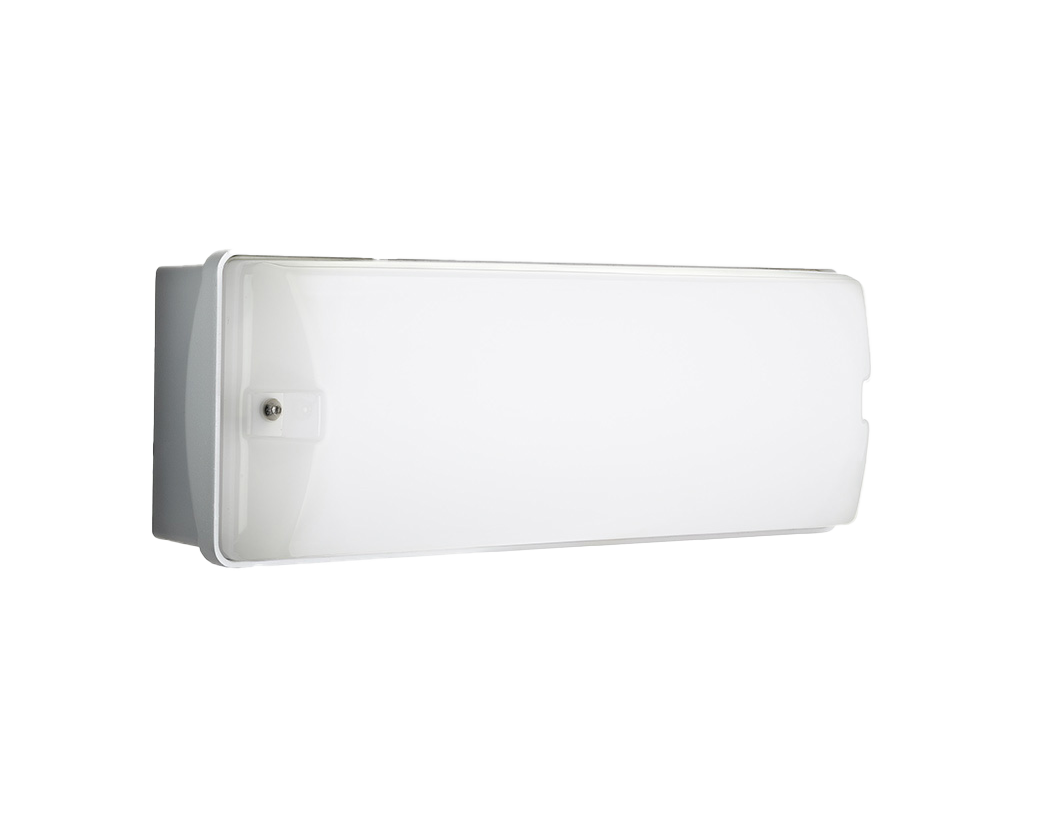

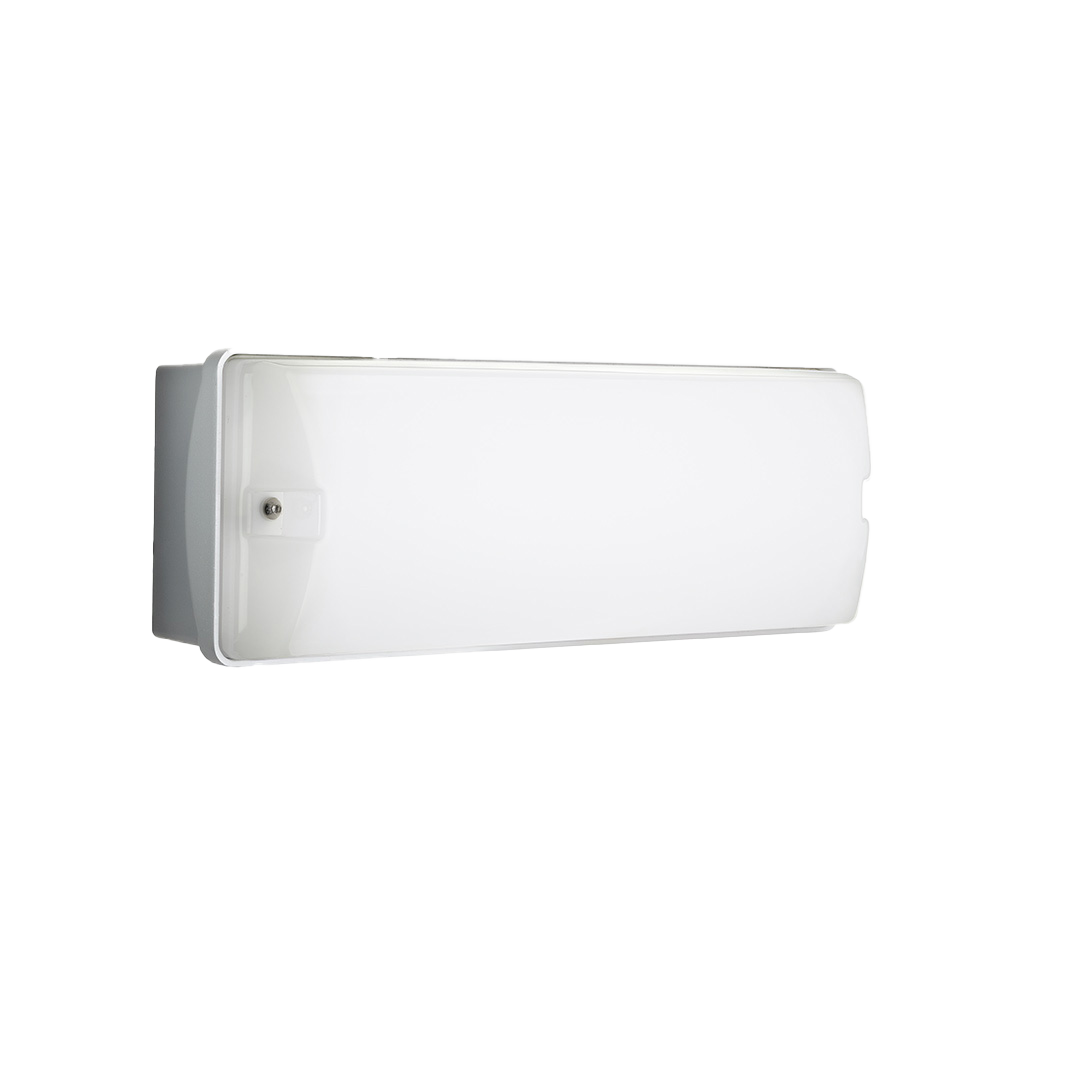

Gemco is a vandal resistant bulkhead designed specifically for challenging environments such as custodial facilities and community and public applications.
Standard Colours
Textured Black
Textured White
Product Information
Product Specification
Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Die cast aluminium body.
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.
Driver: Electronic control gear on removable tray with fused plug & socket connector block.
Mounting: Wall or ceiling
Cable Entry: Provision for conduit entry in back.
Technical Information
| Gemco | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| Opal | ||||
| D200-1200N-X-TW | 1269 | 14.4 | 88 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 467 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||

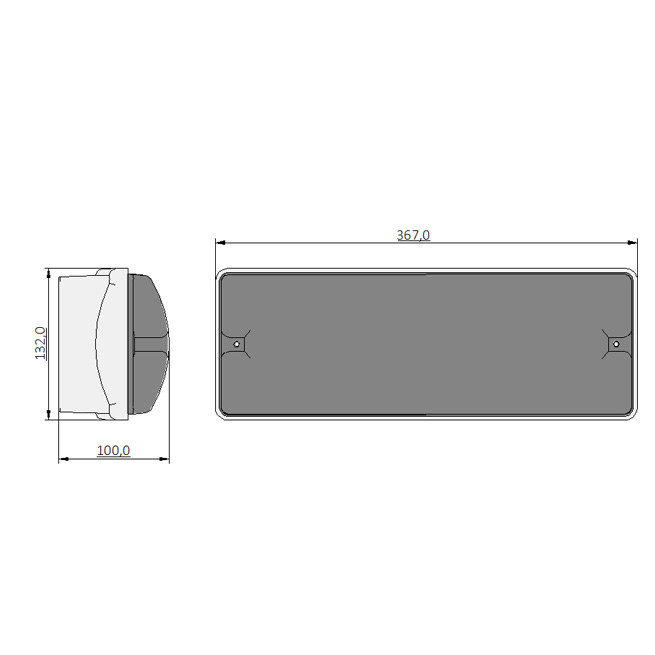

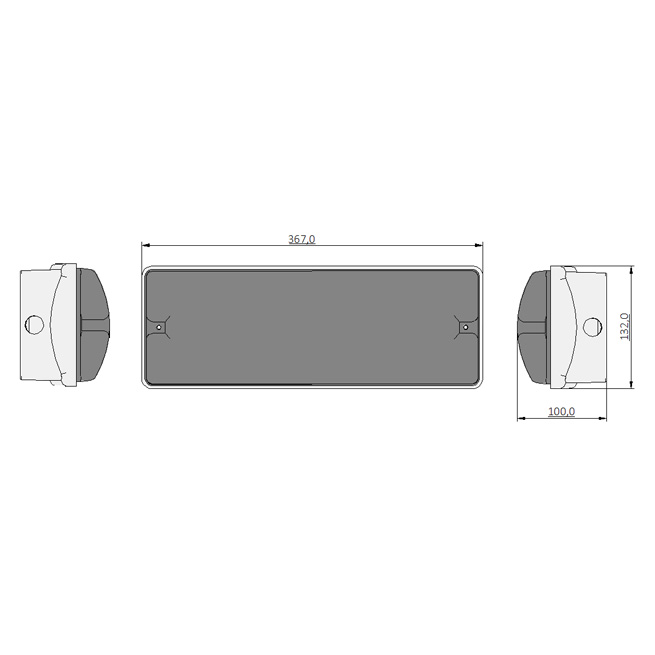

| 2.7 | C | 367mm x 132mm x 100mm | ||
| D200-1800N-X-TW | 1659 | 18.9 | 88 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 467 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 2.7 | C | 367mm x 132mm x 100mm | ||
| D200-1200W-X-TW | 1206 | 14.4 | 84 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>100,000h | 443 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 2.7 | D | 367mm x 132mm x 100mm | ||
| D200-1800W-X-TW | 1576 | 18.9 | 83 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>100,000h | 443 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 2.7 | D | 367mm x 132mm x 100mm | ||
Fitting Options

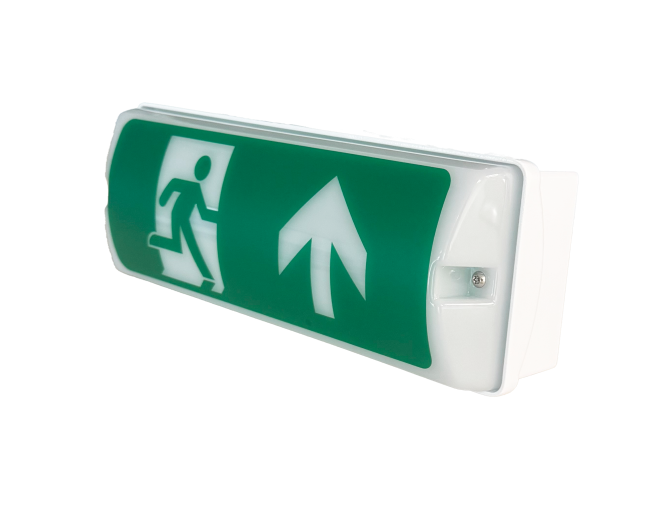

| Exit Legend - Running Man, Arrow Down/Left | -R6 |
| Exit Legend - Running Man, Arrow Up | -R1 |
| Exit Legend - Running Man, Arrow Left | -R7 |
| Exit Legend - Running Man, Arrow Right | -R3 |
| Exit Legend - Running Man, Arrow Down | -R5 |
| Exit Legend - Running Man, Arrow Down/Right | -R4 |
| Exit Legend - Running Man, Arrow Up/Right | -R2 |
| Exit Legend - Running Man, Arrow Up/Left | -R8 |

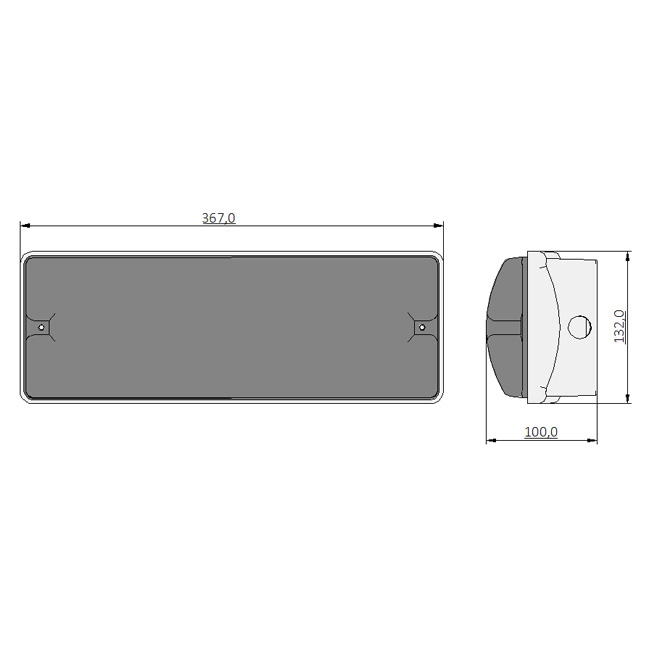

| Conduit Hole in One End | -1H |
| Conduit Hole in Both Ends | -2H |
| Maintained Emergency 3 Hour, Self Test | -ES |
| Change Over Relay, 240V Relay Supplied | -ER |
| Non-Maintained 3 Hour Emergency, Self Test | -NS |
| Central Battery Maintained 110V | -EV |
| Non-Maintained 3 Hour Emergency | -NE |
| Maintained Emergency 3 Hour | -E3 |
| Textured Black | -TB |
| Textured White | -TW |
• For paint colour options, please replace -TW with required paint code.
• -R5 not compliant with ISO 16069/BS 5499-4.
