Miniquad’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution.
Applications include the interior communal spaces of buildings.
Miniquad
IP54
IK14 (100J)
Bulkhead
Class I
Recessed
Surface
HT50°C
Community and Public

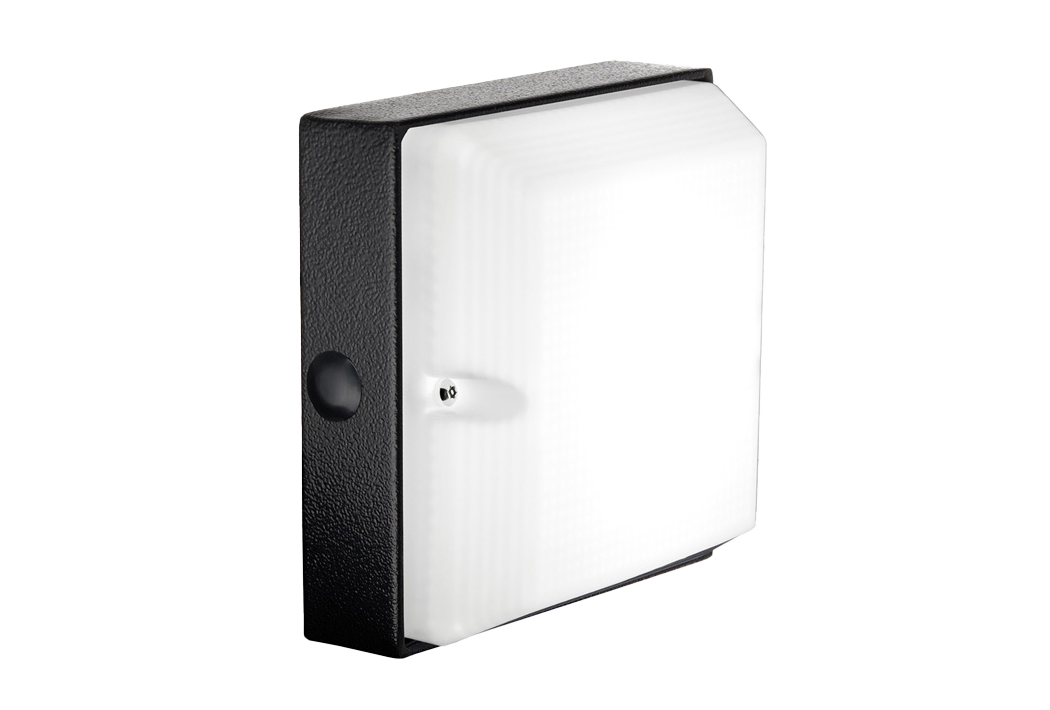

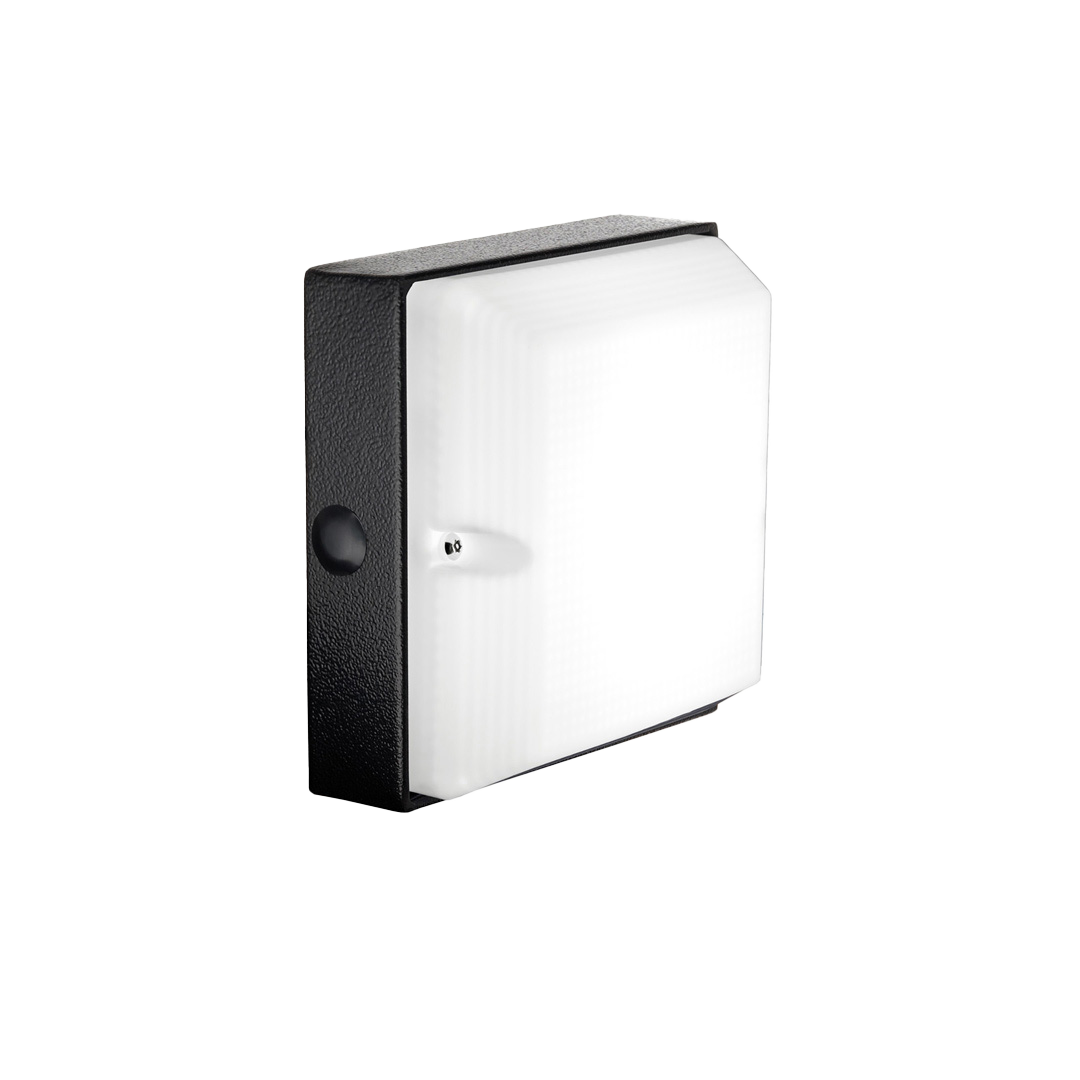

Miniquad is a vandal resistant bulkhead designed specifically for community and public applications.
Standard Colours
Textured Black
Textured White
Matt Titanium
Product Information
Product Specification
Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.
Ingress Protection Rating: IP54. More information, CLICK HERE.
Housing: Zinc coated steel body
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.
Driver: Electronic control gear on removable tray with fused plug & socket connector block.
Mounting: Wall or ceiling.
Cable Entry: Provision for conduit entry in back and two sides.

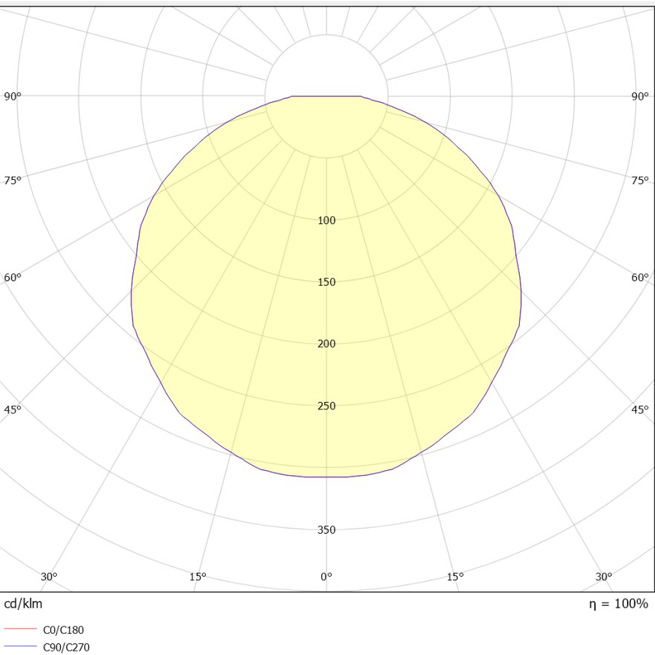

Technical Information

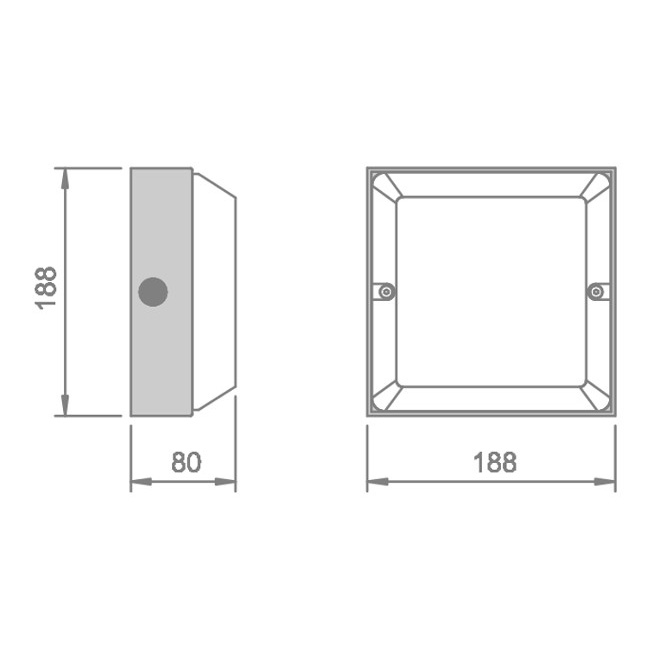

| Miniquad | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| Opal | ||||
| QM-800N-X-TB | 807 | 8.5 | 95 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₇₀B₁₀>100,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 1.7 | D | 188mm x 188mm x 80mm | ||
| QM-1100N-X-TB | 1105 | 11.5 | 96 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 50 | L₇₀B₁₀>100,000h | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 1.7 | D | 188mm x 188mm x 80mm | ||
Fitting Options
| Photo Cell | -PC |
| Microwave Sensor - Basic | -M1 |

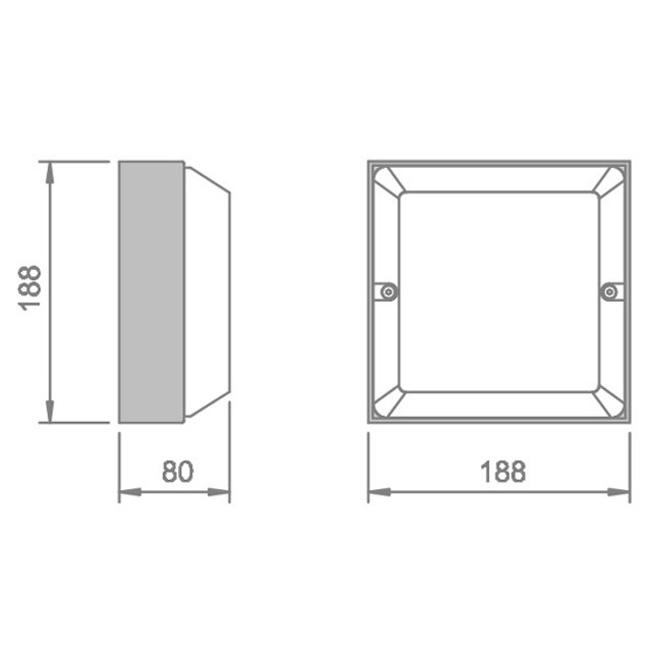

| Blank Ends | -BE |
| Textured Black | -TB |
| Textured White | -TW |
| Matt Titanium | -MT |
• For paint colour options, please replace -TB with required paint code.
• HT Applies for standard version. For any options, please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
