Parkalux Angled is a vandal resistant luminaire specifically designed for challenging environments, such as custodial and secure healthcare facilities, transport applications and community and public installations.

Standard Colours

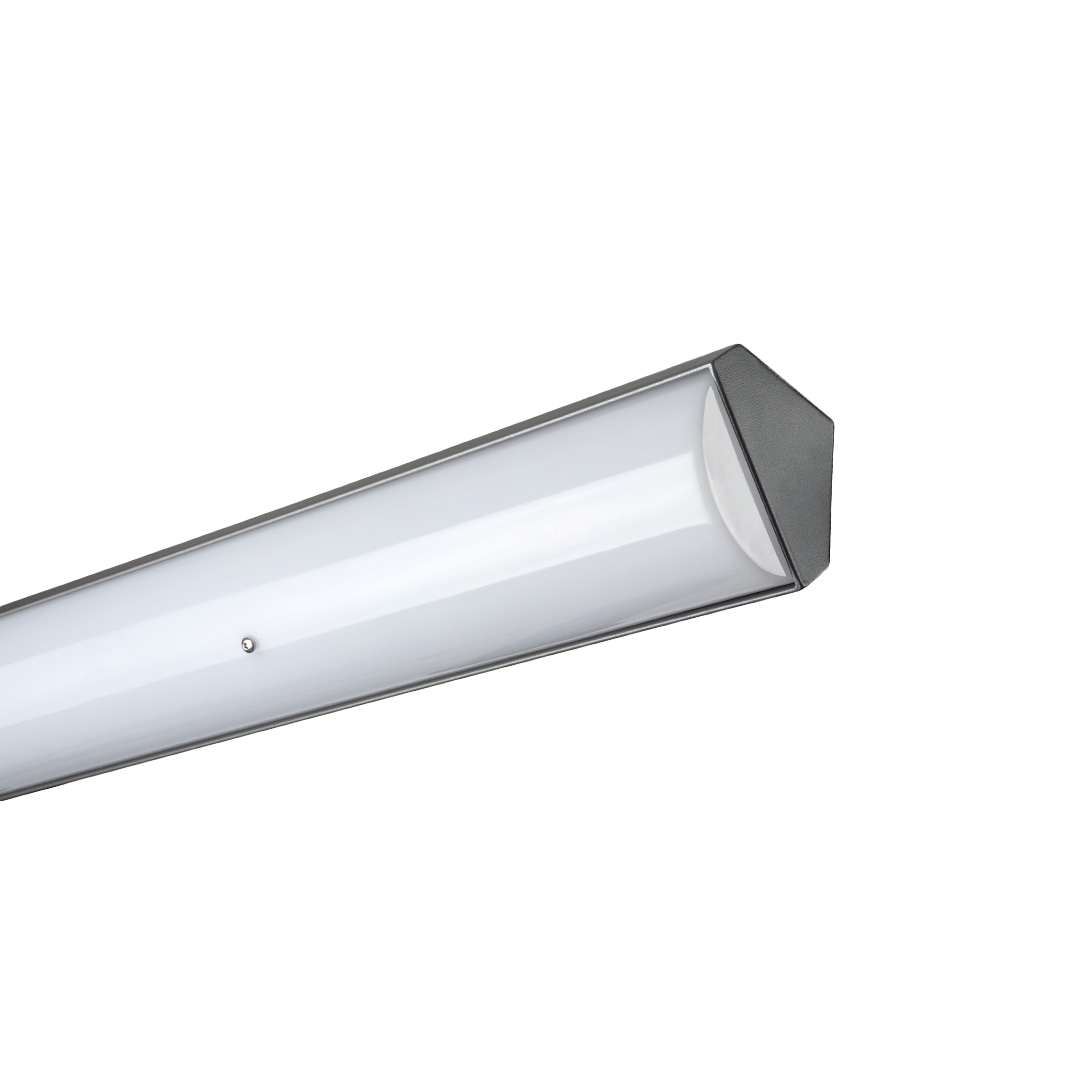

Parkalux Angled Vandal Resistant Luminaire

Product Information

Parkalux Angled design directs light precisely where it’s needed, reducing wasted illumination and minimising glare. Incorporating a removable gear tray ensures Parkalux Angled is quick and easy to maintain, whilst enabling sustainable technology upgrades.

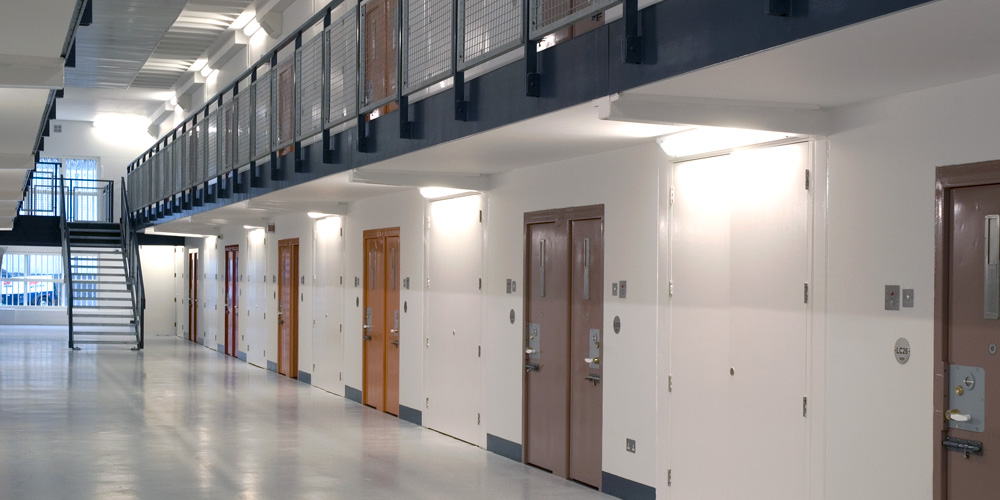

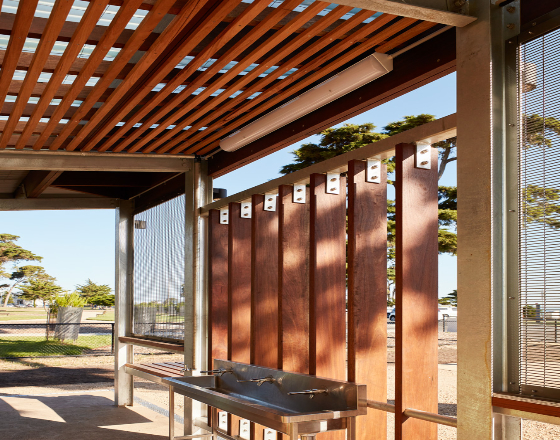

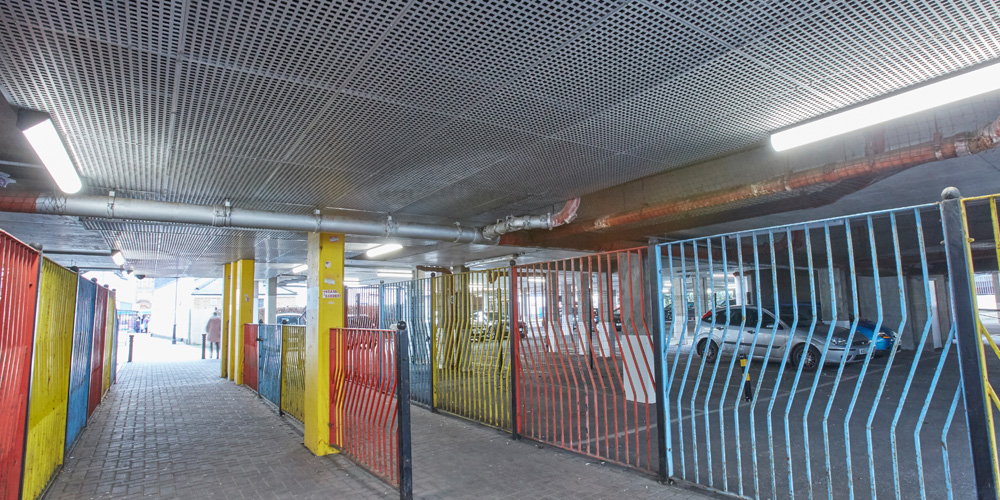

Secure Health applications include corridors and circulation areas. Custodial applications include association areas. Community and Public applications include covered and open car parks.

Product Specification

Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.

Ingress Protection Rating: IP54. More information, CLICK HERE.

Housing: Zinc-coated steel body.

Paint: Polyester powder coat. All colours available, CLICK HERE.

Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.

Driver: Electronic control gear on removable tray with fused plug & socket connector block.

Mounting: Wall or cornice mounting.

Cable Entry: Provision for conduit entry in back and at ends.

Technical Information

Parkalux Angled	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
1245mm x 86mm x 86mm
D323-4-2000N-X-TB	2257	18.3	123	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	659
	Weight (kg)	LED Energy Rating
	5.6	C
D323-4-3000N-X-TB	2891	23.2	125	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	659
	Weight (kg)	LED Energy Rating
	5.6	C
D323-4-4000N-X-TB	3481	27.9	125	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	659
	Weight (kg)	LED Energy Rating
	5.6	C
D323-4-5000N-X-TB	4123	33.3	124	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	659
	Weight (kg)	LED Energy Rating
	5.6	C
D323-4-6000N-X-TB	4711	38.5	122	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	659
	Weight (kg)	LED Energy Rating
	5.6	C
D323-4-2000W-X-TB	2175	18.4	118	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	634
	Weight (kg)	LED Energy Rating
	5.6	D
D323-4-3000W-X-TB	2790	23.3	120	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	634
	Weight (kg)	LED Energy Rating
	5.6	D
D323-4-4000W-X-TB	3356	28	120	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	634
	Weight (kg)	LED Energy Rating
	5.6	D
D323-4-5000W-X-TB	3954	33.3	119	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	634
	Weight (kg)	LED Energy Rating
	5.6	D
D323-4-6000W-X-TB	4532	38.7	117	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	634
	Weight (kg)	LED Energy Rating
	5.6	D
1562mm x 90mm x 90mm
D323-5-2500N-X-TB	2760	22.1	125	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	702
	Weight (kg)	LED Energy Rating
	7	C
D323-5-3750N-X-TB	3535	28.1	126	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	702
	Weight (kg)	LED Energy Rating
	7	C
D323-5-5000N-X-TB	4247	34	125	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	702
	Weight (kg)	LED Energy Rating
	7	C
D323-5-6250N-X-TB	4983	40.3	124	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	702
	Weight (kg)	LED Energy Rating
	7	C
D323-5-7500N-X-TB	5679	46.6	122	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	702
	Weight (kg)	LED Energy Rating
	7	C
D323-5-2500W-X-TB	2710	22.2	122	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	629
	Weight (kg)	LED Energy Rating
	7	C
D323-5-3750W-X-TB	3487	28.4	123	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	629
	Weight (kg)	LED Energy Rating
	7	C
D323-5-5000W-X-TB	4182	34.2	122	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	629
	Weight (kg)	LED Energy Rating
	7	C
D323-5-6250W-X-TB	4899	40.4	121	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	629
	Weight (kg)	LED Energy Rating
	7	C
D323-5-7500W-X-TB	5586	46.7	120	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	629
	Weight (kg)	LED Energy Rating
	7	C

Fitting Options

Coastal Paint Finish (Zone 2)	-Z2
Network Rail Specs	-NT
Blank Ends	-BE
Maintained Emergency 3 Hour, Self Test	-ES
Change Over Relay, 240V Relay Supplied	-ER
Central Battery Maintained 110V	-EV
Maintained Emergency 3 Hour, DALI	-ED
Maintained Emergency 3 Hour	-E3
Textured Black	-TB
Textured White	-TW
Matt Titanium	-MT
Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA
Corridor Function	-CF

• For paint colour options, please replace -TB with required paint code.
• -CF option will only work if combined with an external presence detection sensor supplied by others.
