Abrams AL

Abrams AL

IP65

IK16 (150J)

Linear

Class I

Surface

HT50°C

Yes

Custodial

Secure Healthcare

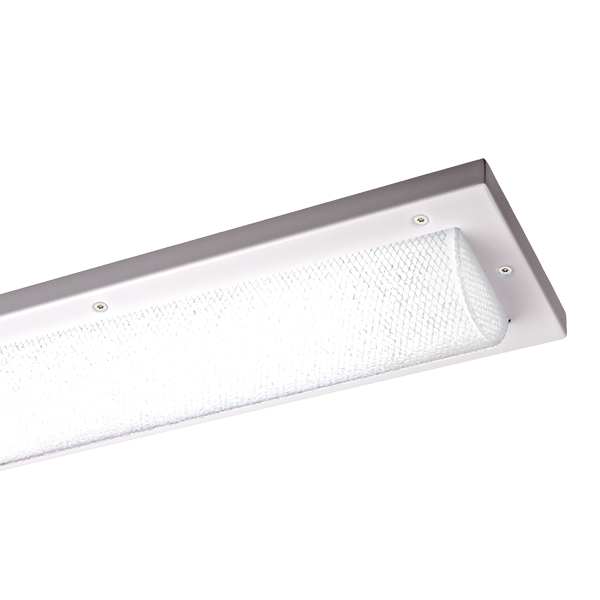

Abrams AL is a ligature resistant luminaire designed for challenging environments including custodial facilities and secure healthcare.

Standard Colours

Product Information

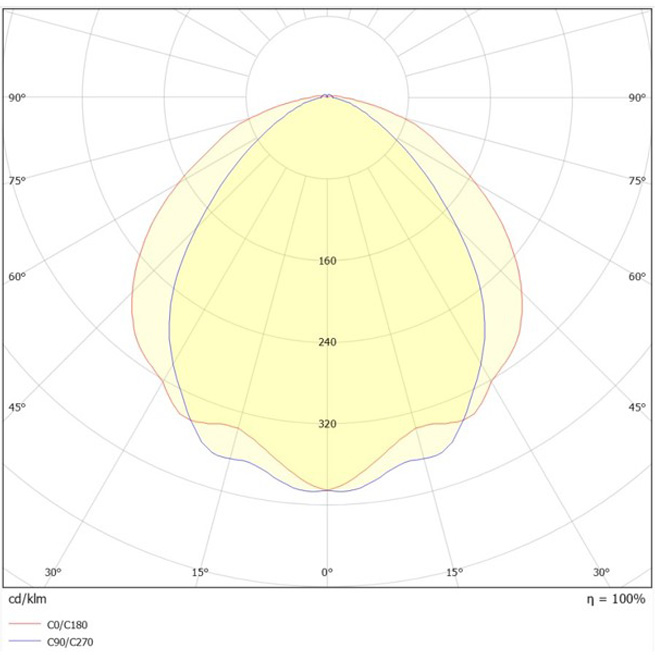

Abrams AL provides uniform light distribution and incorporates a removable, easy to maintain LED gear tray.

Abrams AL is designed to minimise the risk of self-harm or injury by preventing the attachment of ligatures. It is HMPPS “safer cell” approved and features a patented ‘sandwiched’ diffuser design, compliant with burns testing regulations, for additional peace of mind.

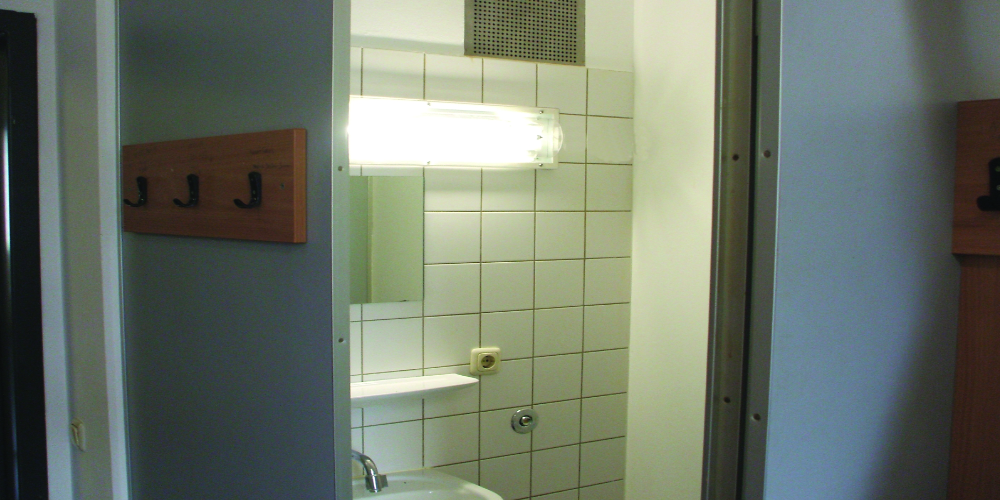

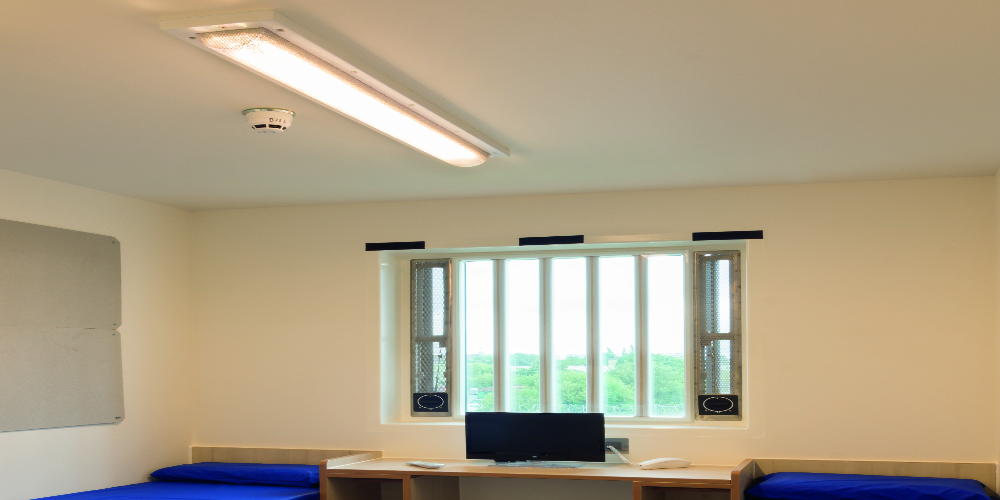

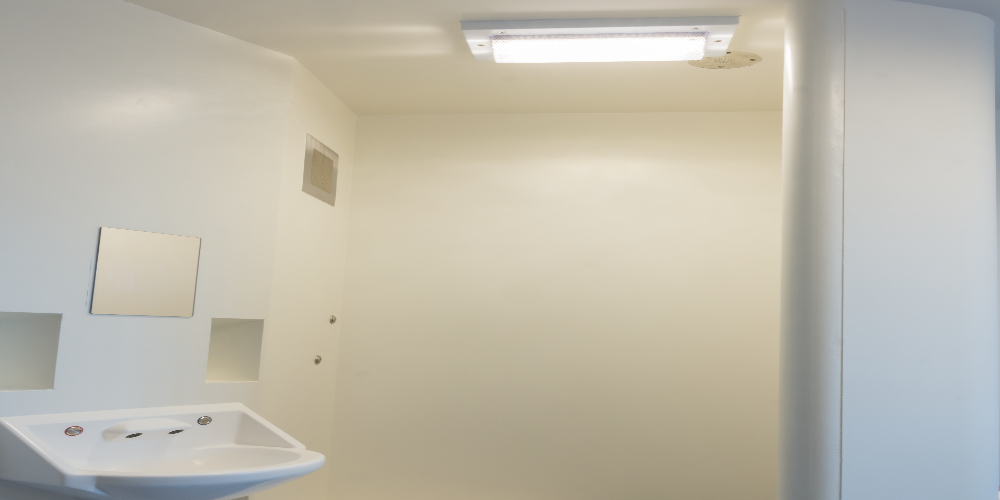

Applications include prison en-suites and showers plus association and communal areas. Abrams AL is also an ideal solution for police stations and law courts.

Product Specification

Impact Resistance Rating: IK16 (150J).

Ingress Protection Rating: IP65.

Housing: Zinc coated steel body.

Paint: Polyester powder coat.

Diffuser: Composite polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on a removable tray with fused plug & socket connector block for 3 level switching & night light.

Mounting: Ceiling.

Cable Entry: Provision for conduit entry in the back.

30 Years Design Life:

Lighting Controls:

Technical Information

Abrams AL	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
L430mm
D224-1-2500W-P-TW	2004	23.6	85	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	High Temp (°C)
	CRI>80	100,000	210	50
	LED Lifetime	Weight (kg)	LED Energy Rating	Dimensions

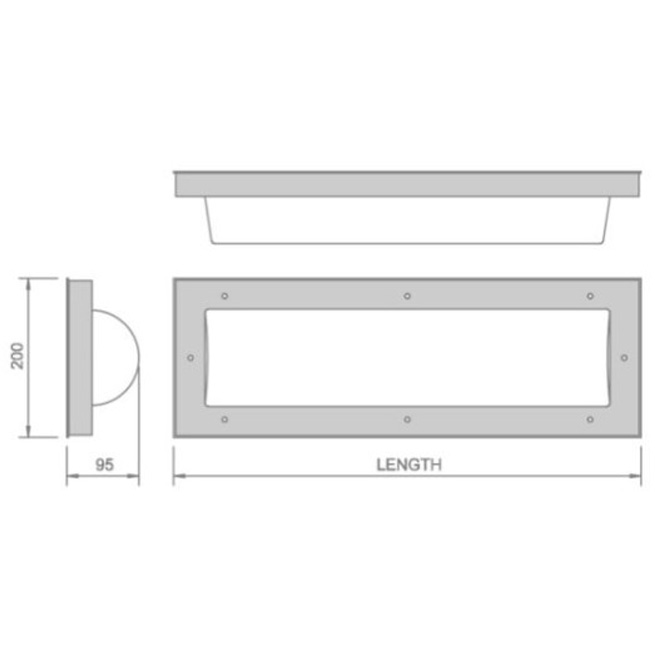

	L₈₀B₁₀>72,000h	5	C	200mm x 95mm
D224-1-2500N-P-TW	2109	23.6	89	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	High Temp (°C)
	CRI>80	100,000	210	50
	LED Lifetime	Weight (kg)	LED Energy Rating	Dimensions
	L₈₀B₁₀>72,000h	5	B	200mm x 95mm
L730mm
D224-2-4000W-P-TW	2906	31.8	92	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	210	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	8	C	200mm x 95mm
D224-2-4000N-P-TW	3059	31.8	96	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	210	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	8	B	200mm x 95mm
L1025mm
D224-3-3400W-P-TW-SE-NL	3416	35.7	96	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	210	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	13	C	200mm x 95mm
D224-3-3400N-P-TW-SE-NL	3596	35.7	101	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	210	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	13	B	200mm x 95mm
L1325mm
D224-4-6000W-P-TW-SE-NL	5035	54.2	93	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	210	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	14	C	200mm x 95mm
D224-4-6000N-P-TW-SE-NL	5300	54.2	98	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	210	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	14	B	200mm x 95mm
