Cove

IP43

IK10 (20J)

Linear

Class I

Surface

Community and Public

Custodial

Secure Healthcare

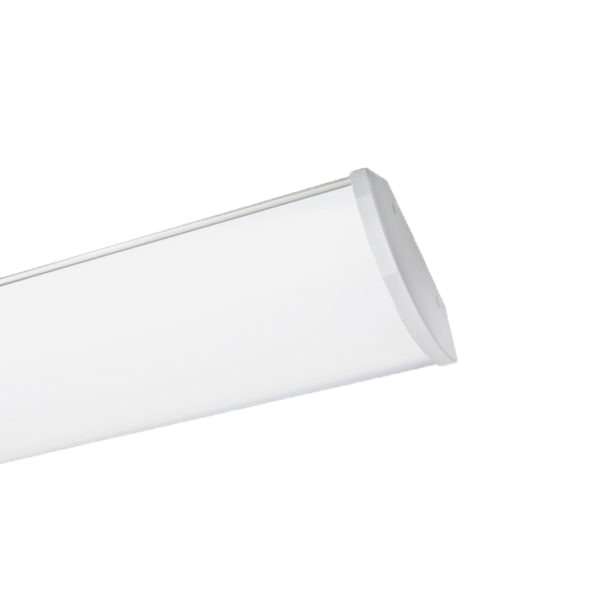

Cove is a slim profile luminaire specifically designed for challenging environments including secure healthcare, custodial facilities and community and public.

Standard Colours

Product Information

Cove’s uniform illumination and slim profile ensure consistent linear lighting, which creates a visually pleasing environment and effectively utilises space. Incorporating a removable gear tray ensures Cove is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Applications include nurse stations and back of house.

Product Specification

Impact Resistance Rating: IK10 (20J). More information, CLICK HERE.

Ingress Protection Rating: IP43. More information, CLICK HERE.

Housing: Zinc coated steel body with injection moulded polycarbonate end caps.

Paint: Polyester powder coat. All colours available, CLICK HERE.

Diffuser: Clip-in opal polycarbonate diffuser.

Driver: Electronic control gear on removable tray with fused plug & socket connector block.

Mounting: Ceiling.

Cable Entry: Provision for conduit entry in back.

Technical Information

Cove	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
L610mm
D975-2-2000N-X-SW	2125	18.9	112	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	2.9
	LED Energy Rating	Dimensions

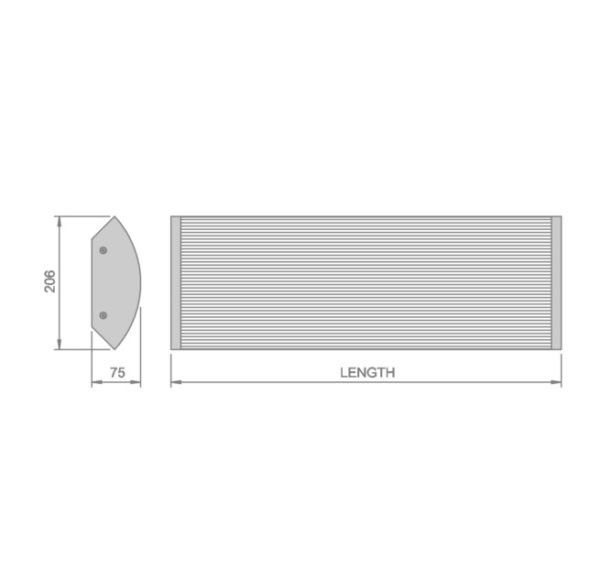

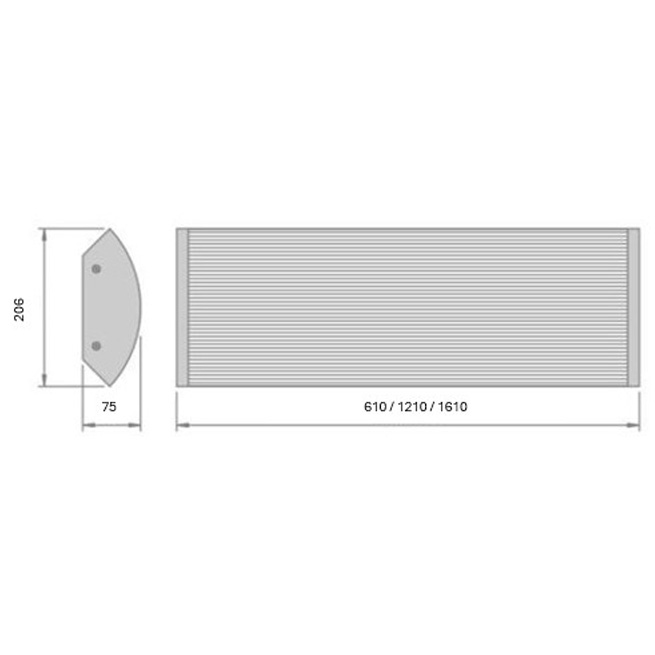

	C	206mm x 75mm
D975-2-3000N-X-SW	2791	26.5	105	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	2.9
	LED Energy Rating	Dimensions
	C	206mm x 75mm
D975-2-2000W-X-SW	2019	18.9	107	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	2.9
	LED Energy Rating	Dimensions
	D	206mm x 75mm
D975-2-3000W-X-SW	2651	26.5	100	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	2.9
	LED Energy Rating	Dimensions
	D	206mm x 75mm
L1210mm
D975-4-3000N-X-SW	3656	28	130	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	785
	Weight (kg)	LED Energy Rating	Dimensions
	4.9	C	206mm x 75mm
D975-4-4000N-X-SW	4427	34.9	127	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	785
	Weight (kg)	LED Energy Rating	Dimensions
	4.9	C	206mm x 75mm
D975-4-5000N-X-SW	5307	43	123	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	785
	Weight (kg)	LED Energy Rating	Dimensions
	4.9	C	206mm x 75mm
D975-4-6000N-X-SW	5999	50	119	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	785
	Weight (kg)	LED Energy Rating	Dimensions
	4.9	C	206mm x 75mm
D975-4-3000W-X-SW	3473	28	124	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	745
	Weight (kg)	LED Energy Rating	Dimensions
	4.9	D	206mm x 75mm
D975-4-4000W-X-SW	4206	34.9	121	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	745
	Weight (kg)	LED Energy Rating	Dimensions
	4.9	D	206mm x 75mm
D975-4-5000W-X-SW	5042	43	117	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	745
	Weight (kg)	LED Energy Rating	Dimensions
	4.9	D	206mm x 75mm
D975-4-6000W-X-SW	5699	50	114	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	745
	Weight (kg)	LED Energy Rating	Dimensions
	4.9	D	206mm x 75mm
L1510mm
D975-5-3750N-X-SW	4511	33.8	133	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	825
	Weight (kg)	LED Energy Rating	Dimensions
	6	C	206mm x 75mm
D975-5-5000N-X-SW	5516	42.3	130	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	825
	Weight (kg)	LED Energy Rating	Dimensions
	6	C	206mm x 75mm
D975-5-6250N-X-SW	6564	52	126	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	825
	Weight (kg)	LED Energy Rating	Dimensions
	6	C	206mm x 75mm
D975-5-7500N-X-SW	7358	60	122	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	825
	Weight (kg)	LED Energy Rating	Dimensions
	6	C	206mm x 75mm
D975-5-3750W-X-SW	4285	33.8	127	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	783
	Weight (kg)	LED Energy Rating	Dimensions
	6	D	206mm x 75mm
D975-5-5000W-X-SW	5240	42.3	124	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	783
	Weight (kg)	LED Energy Rating	Dimensions
	6	D	206mm x 75mm
D975-5-6250W-X-SW	6236	52	120	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	783
	Weight (kg)	LED Energy Rating	Dimensions
	6	D	206mm x 75mm
D975-5-7500W-X-SW	6990	60	117	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	783
	Weight (kg)	LED Energy Rating	Dimensions
	6	D	206mm x 75mm

Fitting Options

Microwave Sensor - Basic	-M1
DALI with **% Pre-set	-D
Maintained Emergency 3 Hour, Self Test	-ES
Change Over Relay, 240V Relay Supplied	-ER
Central Battery Maintained 110V	-EV
Maintained Emergency 3 Hour, DALI	-ED
Maintained Emergency 3 Hour	-E3
Smooth White	-SW
Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA
Corridor Function	-CF

• -E3 / -ES / -ED / -ER options not available on 600mm versions.
• -CF option available will only work if combined with -M1 or an external presence detection sensor supplied by others.
• For Continuous mounting please contact Technical Sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• -ER cannot be combined with -M1.
