    • Trackline Double Head

    IP66
    IK16 (150J)
    Bollards
    Class I
    Transport

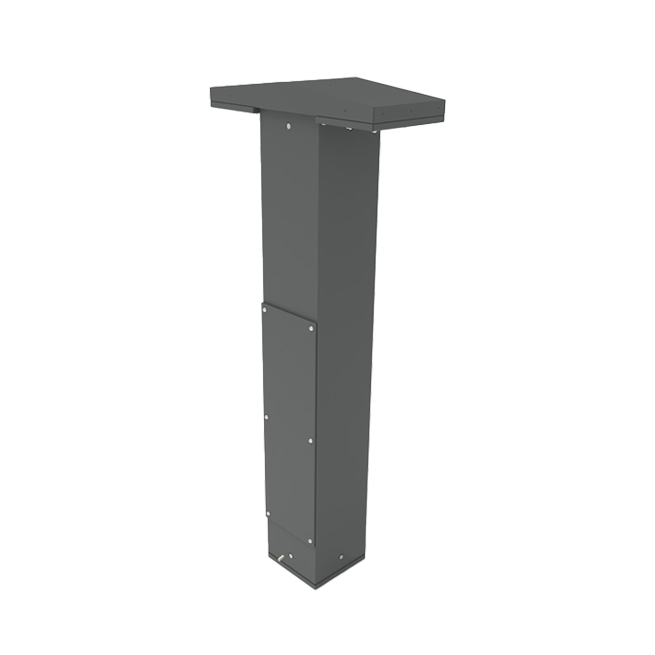

    Trackline Double Head is a vandal resistant bollard specifically designed for railway sidings.

    Trackline Double Head Vandal Resistant Rail Bollard

    Product Information

    Trackline Double Head’s specially sourced optics ensure zero upward light and wide beam distribution. Easily maintained through access hatch and removeable gear tray in head. Trackline Double Head complies with London Underground and Network Rail uniformity and illuminance specifications.

    Trackline Double Head’s spacings are up to 11.6 metres (1200mm version at 0.1 uniformity), with a provision for the Mounting of 16mm² earth cable, if installed into OLE or third rail applications. Horizontal load tested up to 1.5kN/m.

    Application includes railway sidings.

    This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.



    Product Specification

    Impact Resistance Rating: IK16 (150J). What is IK Rating?

    Ingress Protection Rating: IP66 (applies to head only). What is IP Rating?

    Housing: Extruded aluminium body with zinc coated steel head.

    Paint: Polyester powder coat. All Colour Options Available Here.

    Diffuser: Clear polycarbonate

    Driver: Integral electronic control gear. Supplied with plywood board for mounting of junction box or fused cutout.

    Mounting: Internal baseplate.

    Cable Entry: Provision for SWA cable entry in base.

    Design Life: 30+ years. What is Design Life?

    Technical Information

    Trackline Double Head Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
    1000mm
    TRKD-1000-700N-MT 713 9.5 75 4000
    CRI (min) Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>100,000h 183
    Weight (kg) LED Energy Rating Dimensions

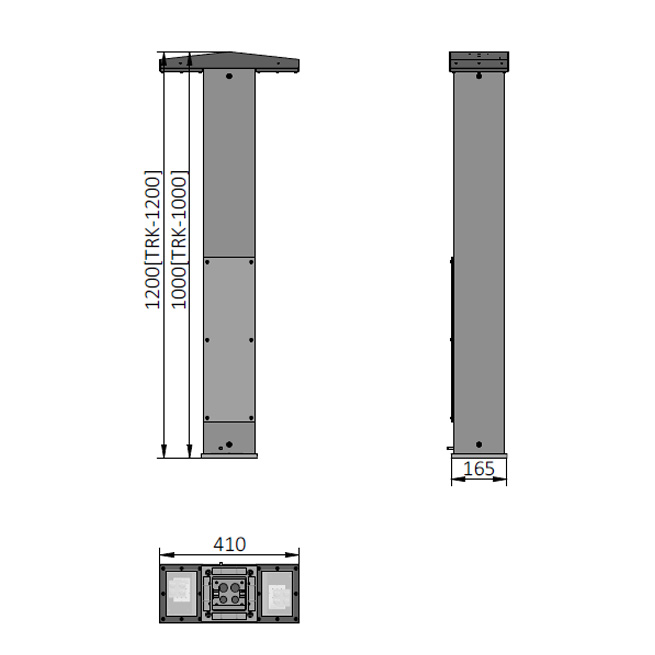

    16 D 410mm x 175mm
    1200mm
    TRKD-1200-700N-MT 713 9.5 75 4000
    CRI (min) Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>100,000h 183
    Weight (kg) LED Energy Rating Dimensions
    17 D 410mm x 175mm

    • HT Applies for standard version. For any options (e.g. -E3), please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.

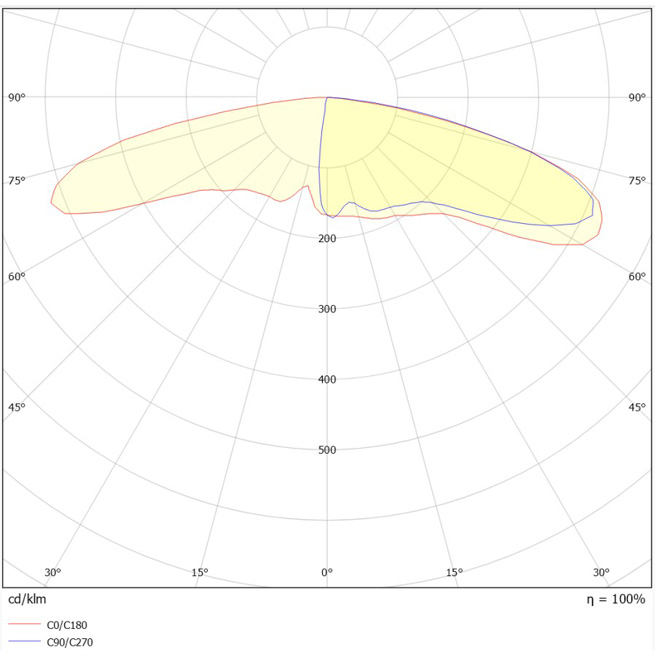

    • For lighting calculations, please use 2 x single Trackline LDT files back-to-back. Emergency output refers to output of each head.

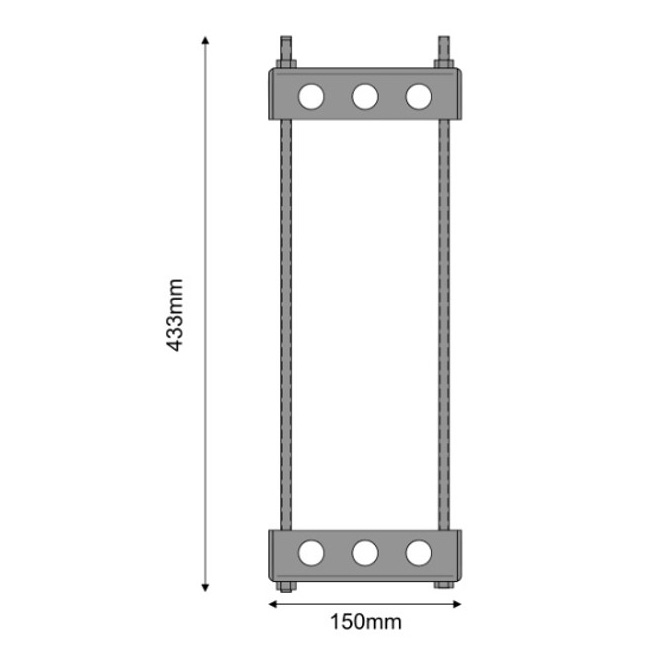

    • For Root mounting bracket, please order TRK-ROOT.
